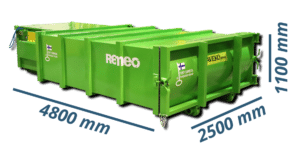

AVEKO Combi

The AVEKO Combi series equipment are press assemblies with fixed containers that are easy to handle with any vehicle. They are ready to use just by plugging them in an electric outlet.

AVEKO Combi is your choice when you want an easy and hygienic solution. It is the basic choice for storesand real estate. We can make it suitable for any facilitywith tailoring and accessories. The AVEKO Combi is slightly smaller and more agile than the detachable press for very large volumes of the AVEKO Duo series. Combi press is also available as a liquid-proof bio-waste version.

Applications include stores, real estate, hotels, hospitals and construction sites.

Standard equipment

Filling funnel
Transport hooks and cable accessories to the front and rear
Hydraulic oil heating
Adjustable runtime
Filling monitoring

Standard containers

10 m³
12 m³
16 m³
18 m³
20 m³
25 m³

Accessories

Container tilting mechanism
Remote monitoring / remote connection
Guide rails
Levels, platforms, railings
Reversible transport hook
Track roller
Track roll
Automatic hatch opening
Hydraulic shutter hatch
Heating system
Cooling system
Deodorizingequipment
Automatic start-upequipment
Various alarm devices
Various pulling devices

AVEKO Combi technical details

Model	Capacity/m³	Filling opening length (mm) A	Filling opening width (mm) B	Total length/mm C	Total width/mm D	Total height/mm E
AVEKO 0815
0815CX/10	10	800	1400	4400	2570	2610
0815CX/16	16	800	1400	5110	2570	2610
0815CX/18	18	800	1400	5610	2570	2610
0815CX/20	20	800	1400	6110	2570	2610
AVEKO 1015	Capacity/m³	Filling opening length (mm) A	Filling opening width (mm) B	Total length/mm C	Total width/mm D	Total height/mm E
1015CX/10	10	1000	1400	4755	2570	2610
1015CX/16	16	1000	1400	5470	2570	2610
1015CX/18	18	1000	1400	5970	2570	2610
1015CX/20	20	1000	1400	6470	2570	2610
AVEKO 1215	Capacity/m³	Filling opening length (mm) A	Filling opening width (mm) B	Total length/mm C	Total width/mm D	Total height/mm E
1215CX/10	10	1200	1400	5010	2570	2610
1215CX/16	16	1200	1400	5720	2570	2610
1215CX/18	18	1200	1400	6220	2570	2610
1215CX/20	20	1200	1400	6720	2570	2610
AVEKO 1219	Capacity/m³	Filling opening length (mm) A	Filling opening width (mm) B	Total length/mm C	Total width/mm D	Total height/mm E
1219CX/16	16	1200	1800	5860	2570	2610
1219CX/18	18	1200	1800	6360	2570	2610
1219CX/20	20	1200	1800	6860	2570	2610
1219CX/25	25	1200	1800	6860	2570	2920
AVEKO 1619	Capacity/m³	Filling opening length (mm) A	Filling opening width (mm) B	Total length/mm C	Total width/mm D	Total height/mm E
1619CX/16	16	1600	1800	6330	2570	2610
1619CX/18	18	1600	1800	6830	2570	2610
1619CX/20	20	1600	1800	7330	2570	2610

*theoretical
Also customer-specific tailor-made solutions
